EnerArk


Integrated Outdoor Battery Energy Storage Cabinet

EnerArk is one of Vilion's best-selling products with the characteristics of space saving, plug and play, one-button for start&stop, safe and intelligent. It can be used in various scenarios such as industrial and commercial emergency power backup, peak-load shifting, system capacity expansion and new energy power generation.

  • Battery Capacity (BOL): 125kWh~215kWh
  • Rated Power: 30kW, 50kW, 100kWh
  • Cell: LFP batteries
  • FFS: Novec1230 + water fire suppression system

Keyword:

EnerArk

  • 产品描述
    • Commodity name: EnerArk

    <h3>Integrated Outdoor Battery Energy Storage Cabinet</h3> <p>EnerArk is one of Vilion's best-selling products with the characteristics of space saving, plug and play, one-button for start&stop, safe and intelligent. It can be used in various scenarios such as industrial and commercial emergency power backup, peak-load shifting, system capacity expansion and new energy power generation. </p> <ul> <li>Battery Capacity (BOL): 125kWh~215kWh</li> <li>Rated Power: 30kW, 50kW, 100kWh</li> <li>Cell: LFP batteries</li> <li>FFS: Novec1230 + water fire suppression system</li> </ul>

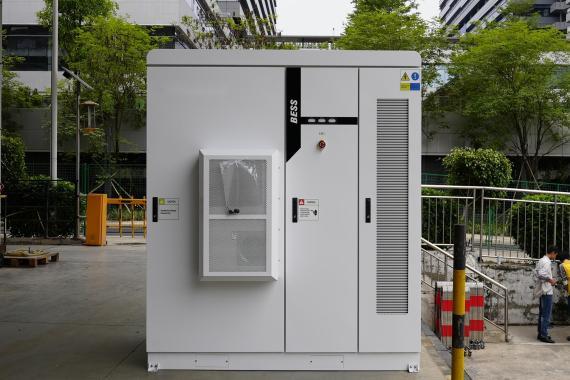

    EnerArk Integrated Outdoor Battery Energy Storage Cabinet

    The EnerArk Integrated Battery Energy Storage Cabinet stands as a flagship product in Vilion, highly praised by a multitude of users for its superior integration, user-friendly operation, reliable performance, and sleek design. The cabinet features EV-grade safety LFP batteries known for their exceptional performance and combustible gas detection + Novec1230 + water fire suppression system, easily adaptable to various power sources for peak-load shifting, emergency backup, cost savings through Time-of-Use tariffs, and seamless integration with renewable energy sources. It is the preferred choice for commercial districts, shopping malls, communities and charging stations.



    The EnerArk adopts a revolutionary four-layer safety design, capable of AC or DC coupling with photovoltaic systems and supporting parallel connection and coordinated control of up to 60 units. Currently, EnerArk has obtained CE certification for the entire unit and global authoritative certifications including G99, VDE2510, IEC62109, IEC62619, CEI021, CEI016, UN3480, UKCA, MSDS, with applications spanning across multiple countries on 5 continents.

    Key Parameters for EnerArk

    Cell: LFP


    Capacity: 125kWh~215kWh


    Rated Power: 30kW, 50kW, 100kW


    Rated Grid Voltage: AC400V±15%


    Communication Interface and Protocol: Ethernet,Modbus TCP/IP


    Size: 1686mm*2093mm*1392mm






    Key Parameters of EnerArk

    Benefit from the Time-of-Use tariff


    Peak-load shifting


    Grid support service


    Renewable energy integration


    Demand management


    Emergency power












    Customer Values

    High Safety
    Embedding safety in the whole process of system design, including but not limit to the original design patents of preventing flame outward expansion and battery cluster active parallel management technology.


    ● Quick Response
    Further optimized control system can realize responding within 100ms, and meet quick DFR FM applications.


    ● Flexible Scalability
    Standardized modular building block design to satisfy various power levels parallel connection of multiple units for high-capacity energy storage demands.


    ● Intelligent Operation
    AI and digital intelligent energize the independently developed cloud platform to realize remote monitoring, real-time battery life assessment service, and visible quality assurance.



    Bring you with the more secure, more intelligent,

    more professional and more flexible energy using experience.

    Vilion offers customized Battery Energy Storage System (BESS) solutions tailored to your project's specific application, providing flexible power and capacity options.
    Application: frequency regulation, voltage support, renewable energy integration, peak load shifting, microgrid and backup power supply.
